SPECIFICATION

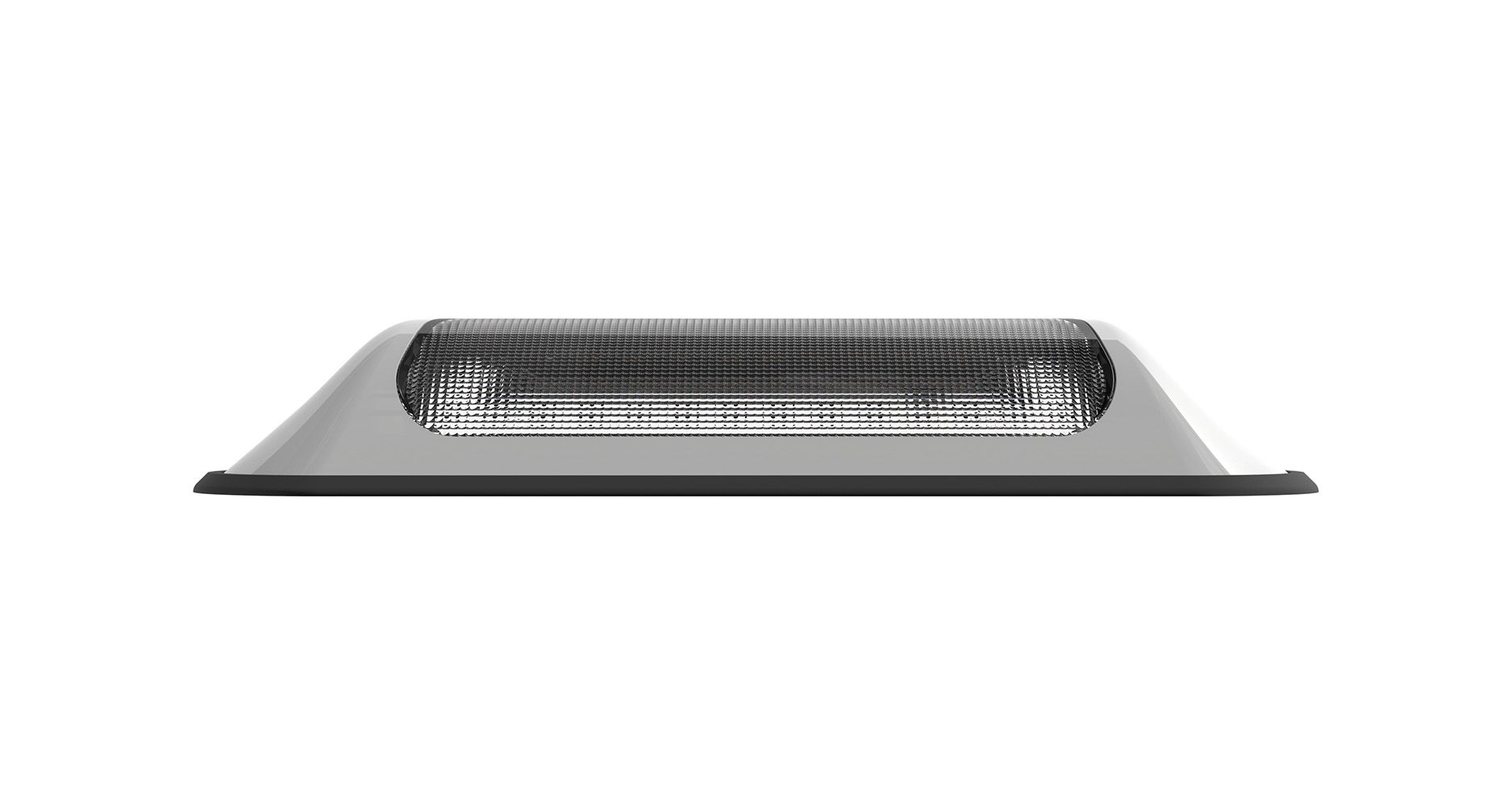

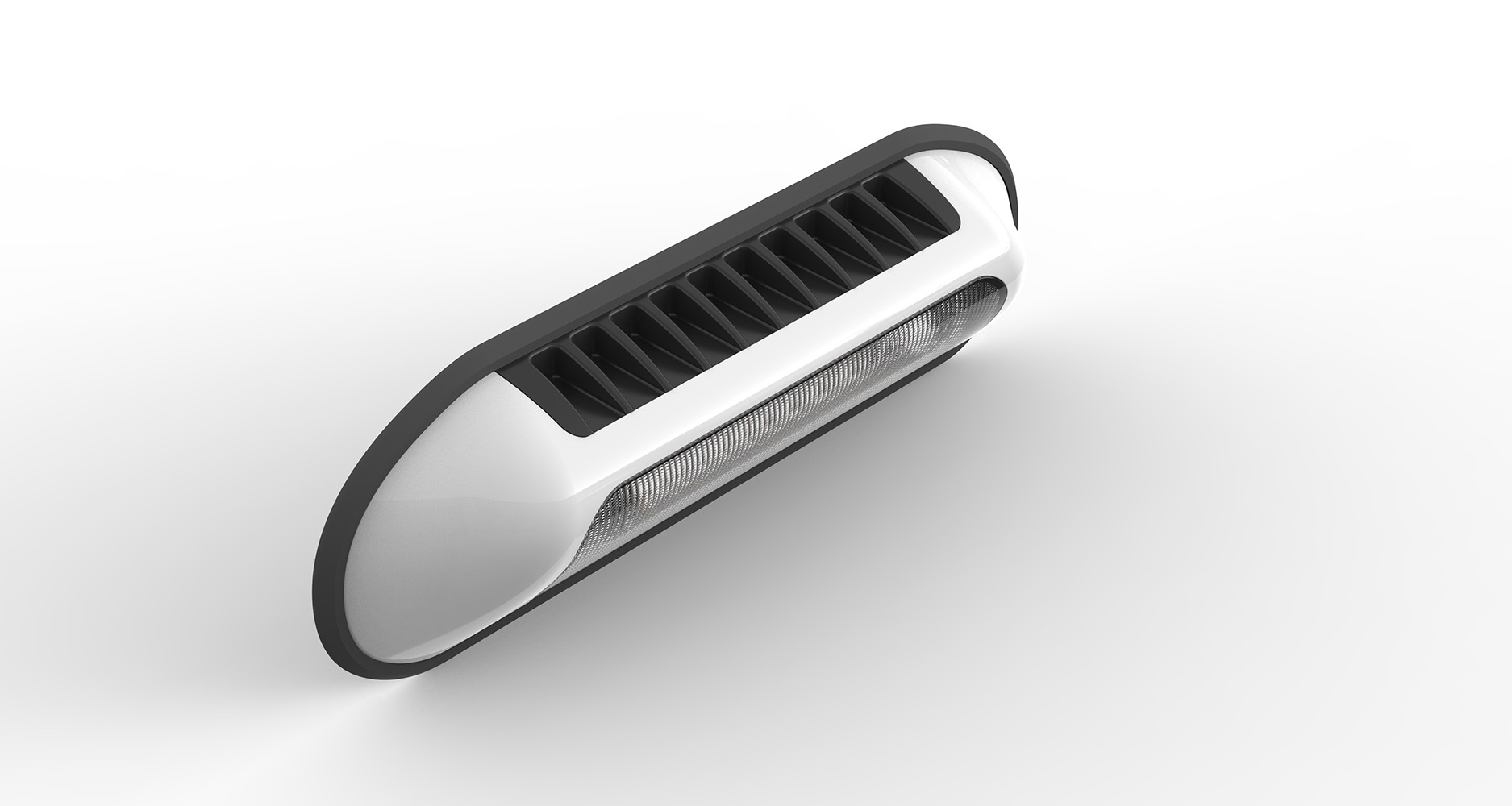

• Part Number SL1-1

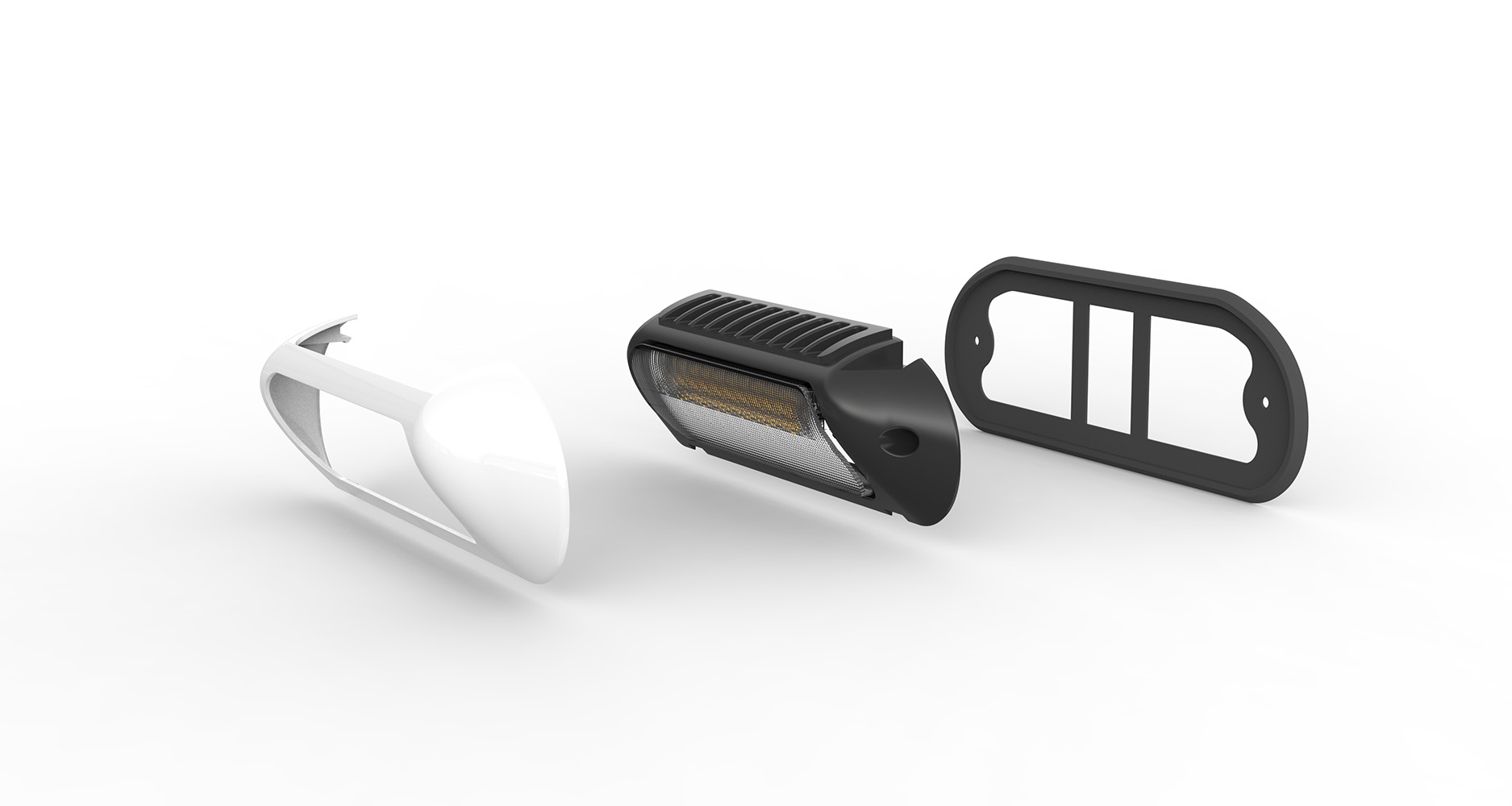

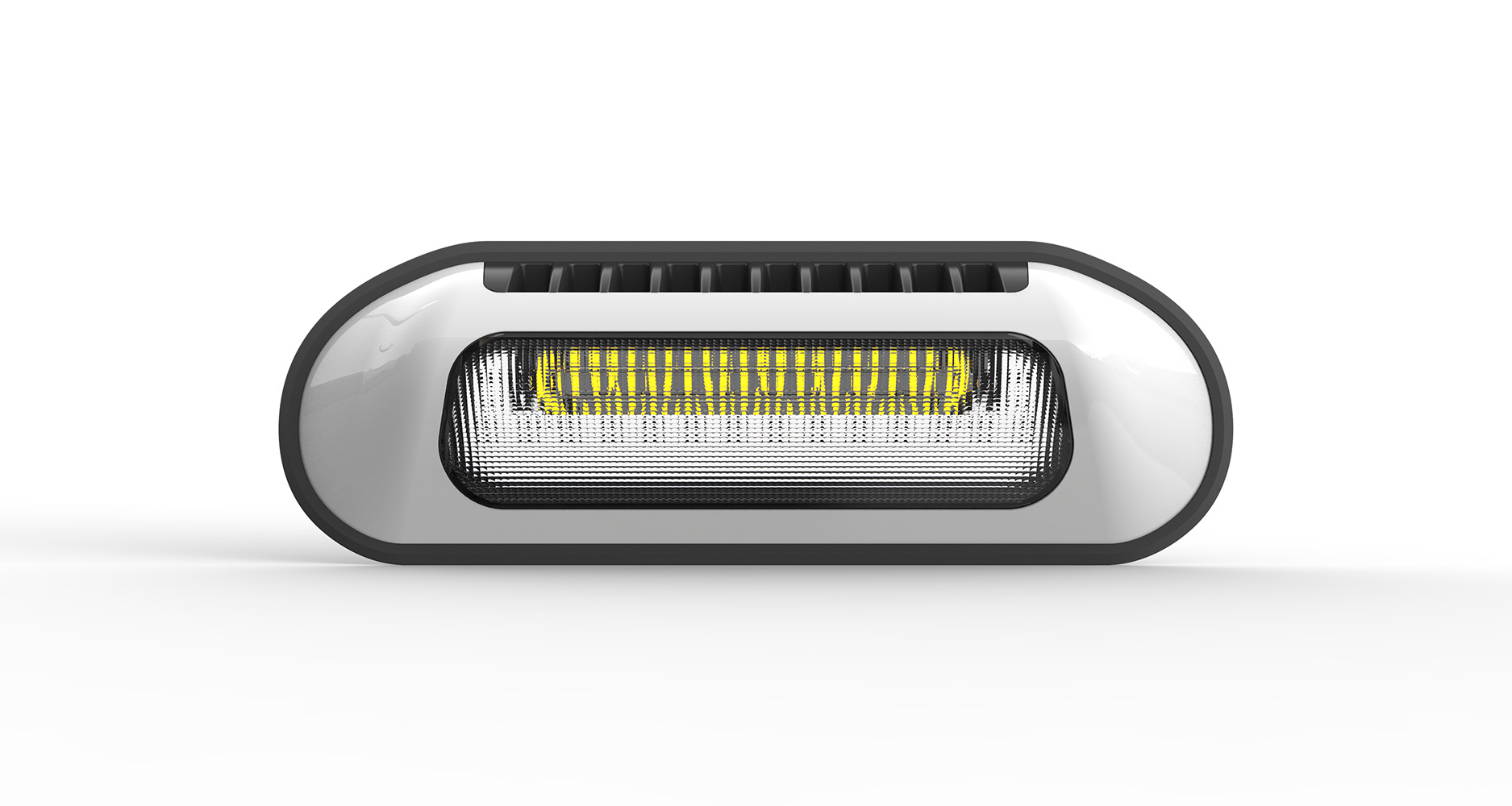

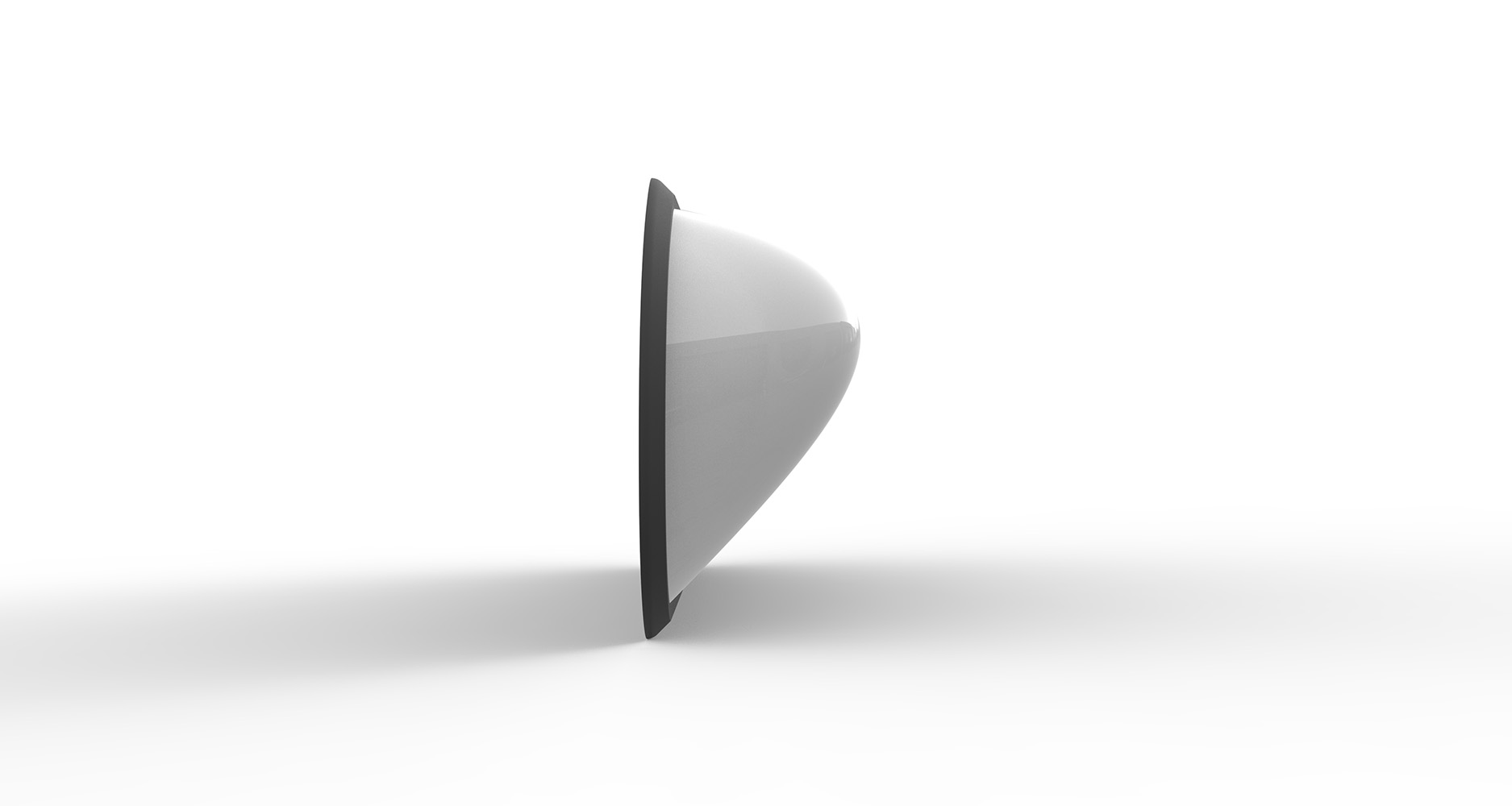

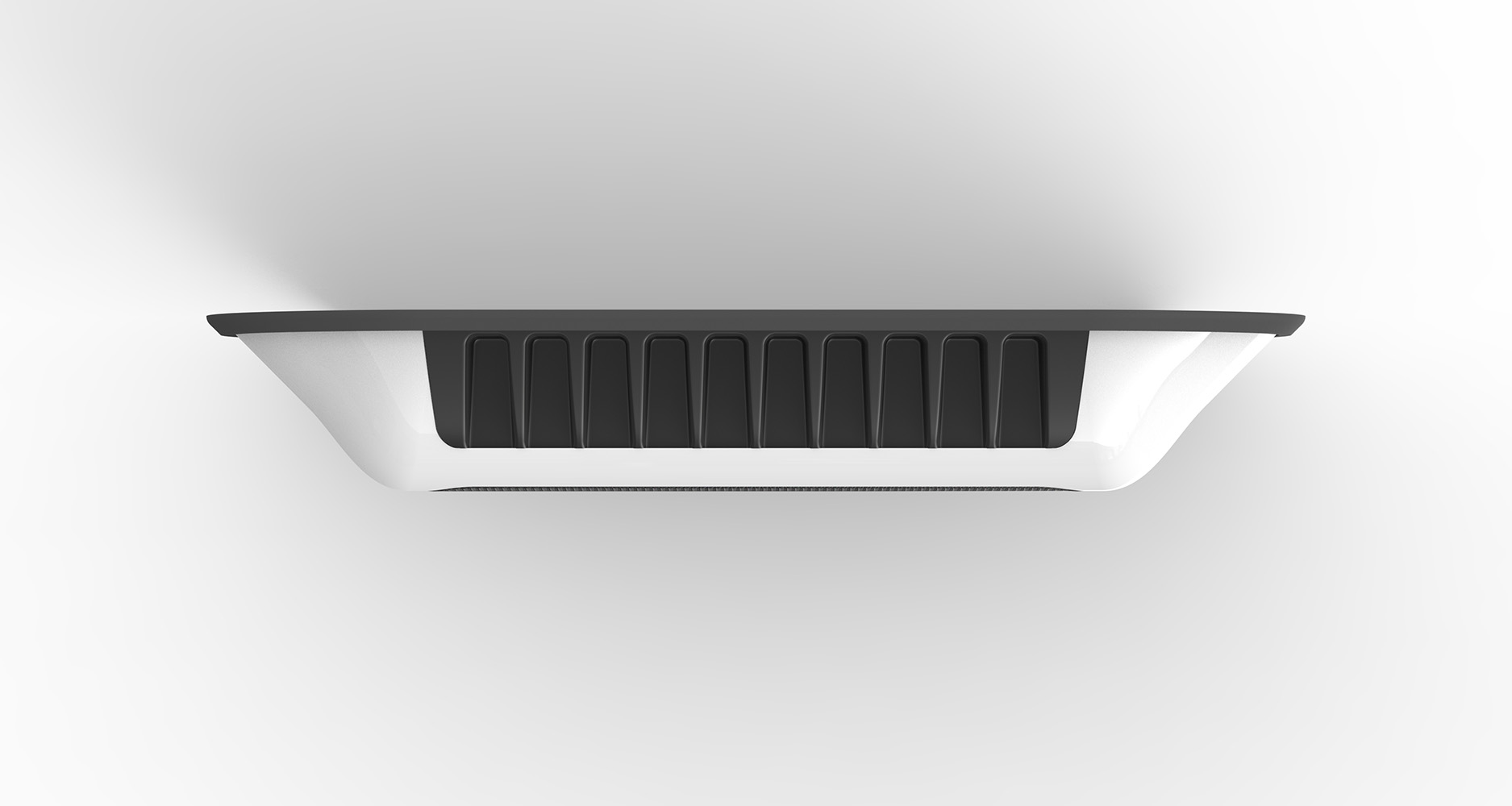

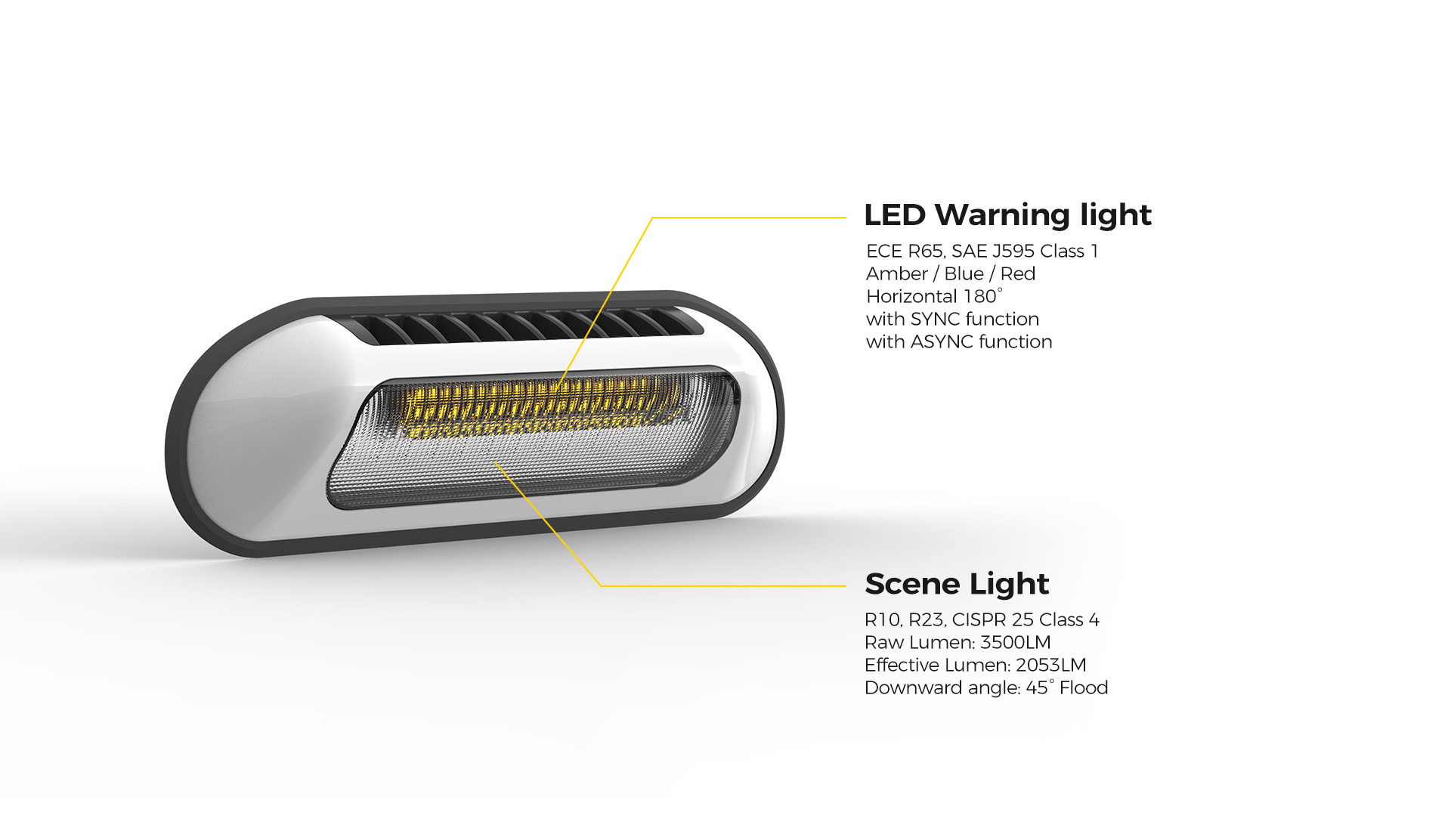

• Item Name Scene Light with Warning Light

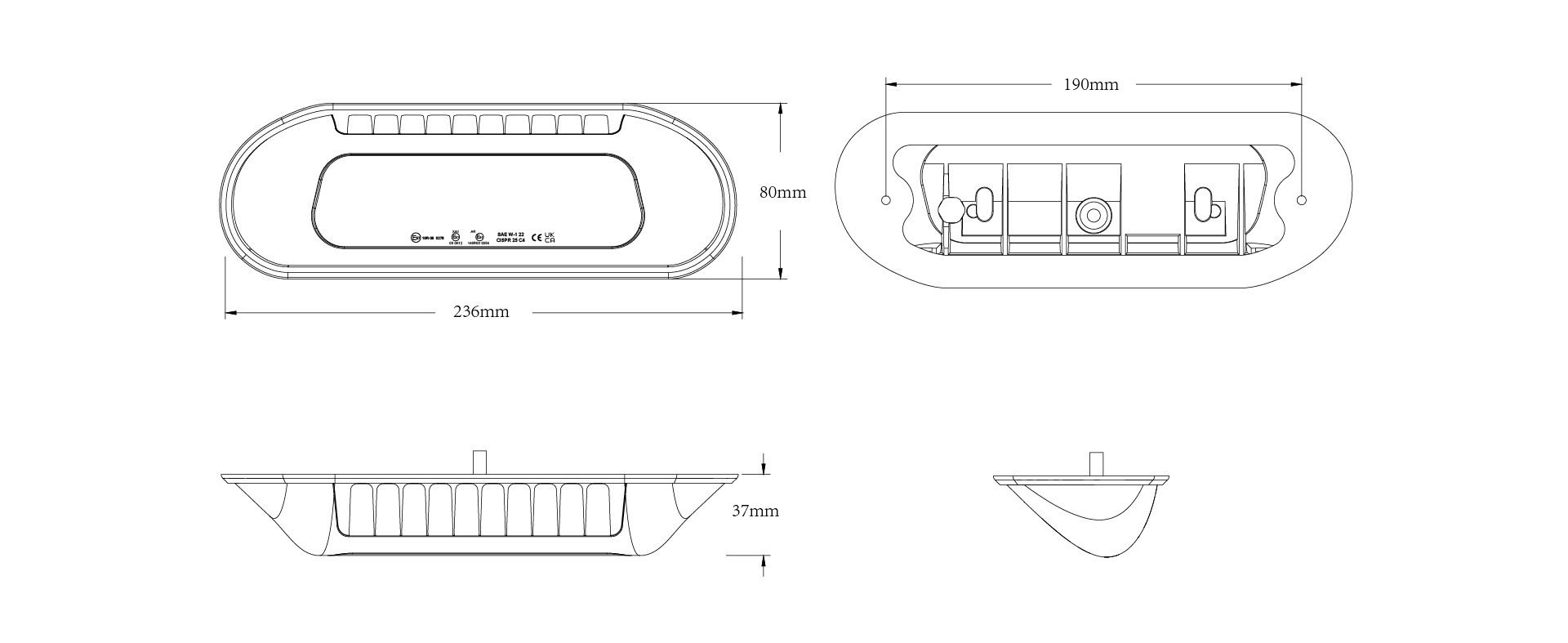

• Size 236x80x37mm
• Scene Light Power 48W (32pcs 1.5W)
• Warning Light Power 18W (12pcs 1.5W)
• Raw Lumen 3500LM
• Effective Lumen 2053LM
• Scene Light Angle Down 45°
• Warning Light angle Horizontal 180°
• Synchronization Green wire
• Asynchronous White Wire
• Waterproof IP67, IP69K
• Flashing patterns 13 Patterns
• ECE Approval ECE R65, ECE R10, R23 (Reversing)
• SAE Approval SAE J595 Class 1
• Other Approval CE, UKCA
• Voltage 10-30V

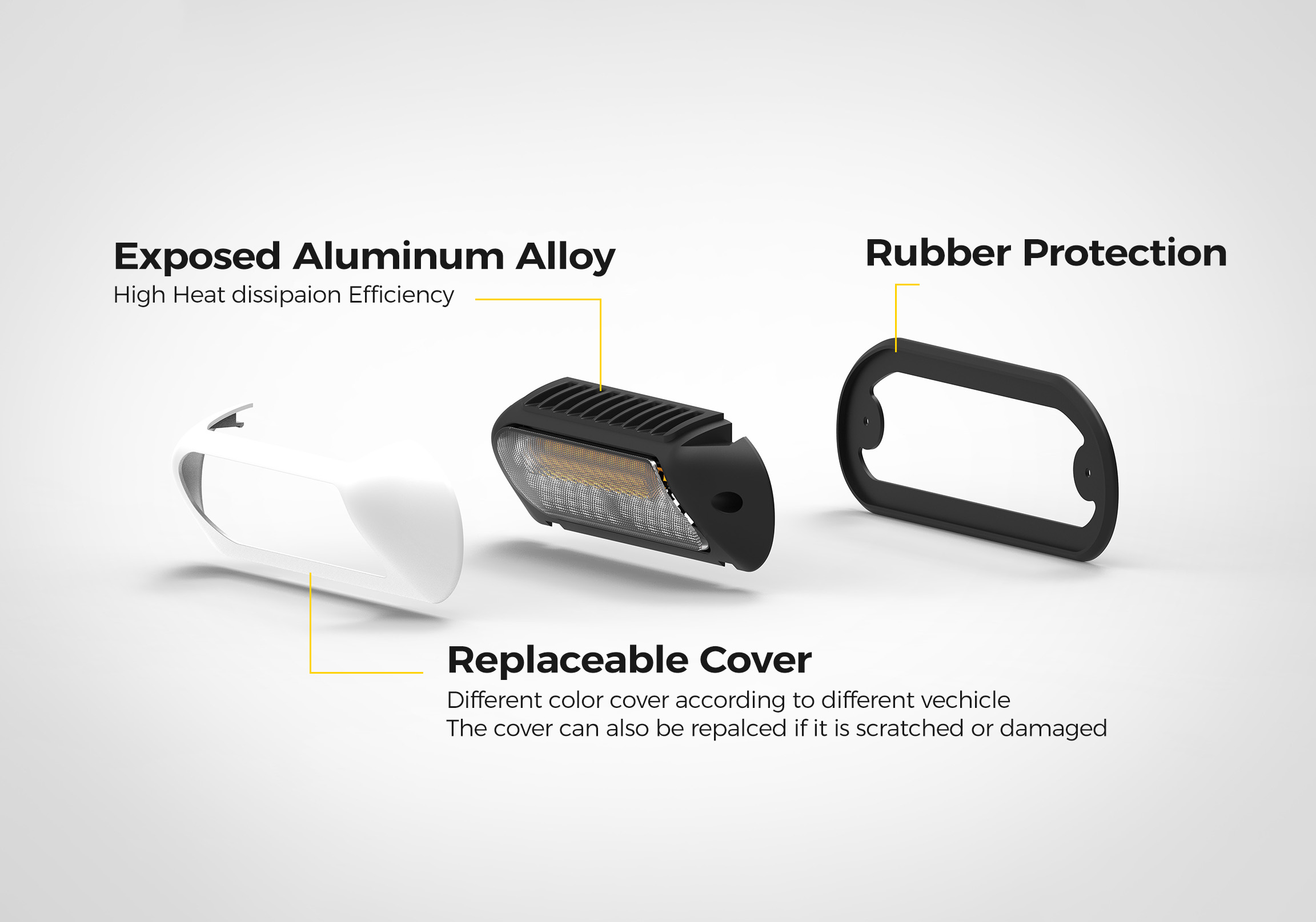

• Housing Material Aluminium Housing, PC Cover
• Lens Material UV resistant PC Lens
• Lens Color Clear
• Mounting Screw Mount
• Cable 0.3M cable
• Gasket Rubber
• Warranty 5 Years
• Working Temp -45°C ~ +65°C
• Package 10pcs/ctn, 4.4kg, 44x27x21.5cm
